When a synchronous machine is used as a motor, it is expected that when connected to a power source it will be able to give the
starting as a DC machine or an induction motor does. However, a synchronous motor does not have this capability. If the fields
of the poles are excited by the field current and the stator terminals are connected to an AC power source, the synchronous motor
will not depart; on the contrary, it will start to vibrate.
It should be noted that these machines are called synchronous because they rotate at a constant speed and frequency and
according to the frequency of the power system.
2. Construction of Three-Phase SynchronousMachines
A synchronous machine has the three phase windings on the stator, distributed in such a way that they are out of phase 120°
electrically. The winding of the stator, to which the voltage source AC is connected, is also called armature winding.
It is designed for with stand high voltages and high currents.
The field winding is installed on the rotor, which is supplied with DC current. The field winding
it is powered by an external DC source through slip rings and brushes.
Synchronous machines can be divided into two groups:
High speed machines with cylindrical rotors (or non-salient poles).
When a synchronous machine is used as a motor, it is expected that when connected to a power source it will be able to give the
starting as a DC machine or an induction motor does. However, a synchronous motor does not have this capability. if the fields
of the poles are excited by the field current and the stator terminals are connected to an AC power source, the motor
synchronous will not break; on the contrary, it will begin to vibrate. We can say that a synchronous machine is doubly excited; the
rotor poles are fed by a DC current, while their stator windings are fed by a source
AC.
The flux in the air gap of the machine is the result of the flux provided by the rotor winding and the stator winding. Thus,
if in a synchronous motor the field winding of the rotor provides only the necessary excitation, the stator will not consume
reactive current, that is, the motor is operating with a unity power factor. If the current in the rotor winding is
reduced, the stator winding will draw a lagging reactive current
from the AC source to reinforce the magnetization in the air gap.
Otherwise, that is, if we increase the excitation in the rotor winding, the stator winding will draw a current
AC source forward reactive to compensate for the increased flux in the air gap. In this way, just varying the current in the
field we can vary the power factor of the synchronous motor.
If there is no load coupled to the synchronous motor shaft and it simply floats in a power system, it can either behave
as an inductor or as a capacitor, simply by changing the field current in the rotor .
A synchronous machine with no load is called a synchronous capacitor. It can perfectly be used in power supply systems
to regulate line voltage. In industry, it can operate together with induction motors in overexcited mode to drain a
leading reactive current, in such a way that it can compensate for the lagging reactive current consumed by induction motors.
As a result, there is a significant improvement in the power factor of the industrial park.
It should be noted that these machines are called synchronous because they rotate at a constant speed and frequency and
according to the frequency of the power system.
Basically, for a three-phase synchronous machine to perform its rotating movement, it is necessary to produce a
rotating three-phase magnetic induction field. To do so, we feed the three phases of the motor with a balanced three-phase network, symmetrically arranged and electrically 120° out of phase with each other. If these conditions are satisfied, they will produce a constant magnetic induction field, in magnitude, since its phase changes at all times. In this item we will analyze how we achieved this condition.

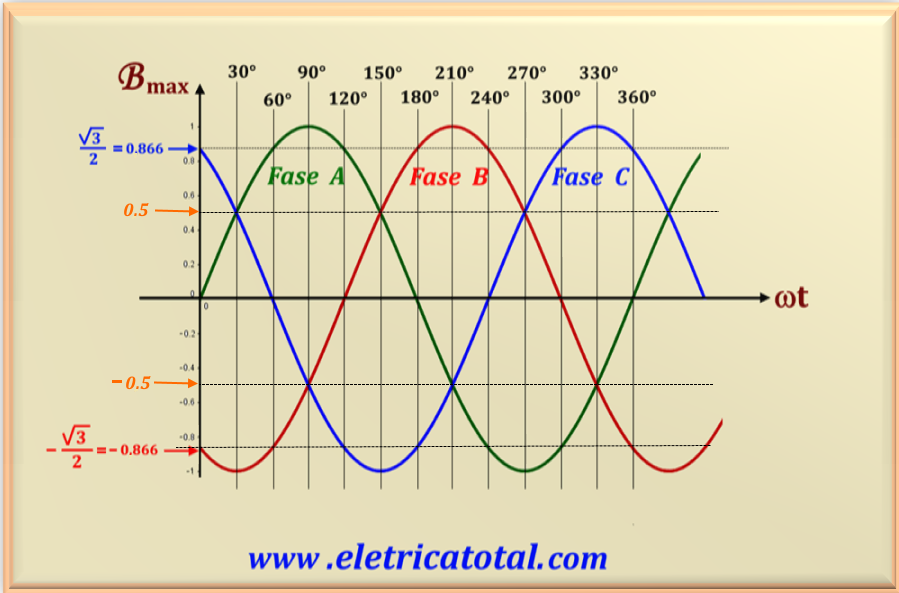

Our entire analysis is based on Figure 106-01. This figure shows the plot of the three phases shifted by 120°
each other. In order to show the detailed formation of the rotating field, we provide the division of the 360° angle into 12 vertical lines offset by 30° between them.
On the other hand, let's call the magnetic induction field generated by phase A as BA. In
similarly, for phase B as BB and for phase C as BC.
Figure 106-01
Let's analyze how the resulting phasor is formed, initially for the 0° angle. Note that, in this case,
the value of the magnetic induction field of phase A, is null (BA = 0). However, in the case of phases B and C, their values are different from zero and, in module, are equal to
0.866Bmax , as graph above. Note that they have opposite signs. So, taking that into account, we can plot a graph where it will be possible to understand the formation of the rotating magnetic induction field.

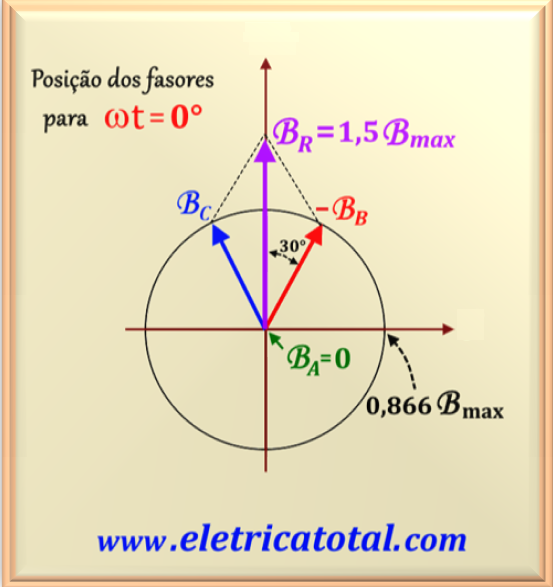

Figure 106-02
In Figure 106-02 we show the formation of the resulting magnetic induction field. Note that it is the result of the sum
phasor of BC with - BB . Pay attention to the fact that the length of the phasors BC and - BB are limited by the black circle, indicating that the value of phasor is equal to 0.866 Bmax.
As the phasor BB is 120° behind BA, so of course the
- BB phasor must be 180° - 120° = 60° ahead of BA.
Having established these considerations, at this point, we must find the value of the resulting phasor. Note that the two phasors,
- BB and BC, are making an angle of 30° with the vertical. Remembering that |- BB | = |BC | = 0.866 Bmax , easily
we calculate the resulting phasor, BR, using a little trigonometry. Follow the calculation below:
BR = 0.866 Bmax cos (30°) + 0.866 Bmax cos (30°)
Note that the first part of the equation is the projection of the modulus of - BB onto the vertical axis. And the second part is the projection of the modulus of BC also on the vertical axis. On the horizontal axis the two components cancel because they have opposite signs. Therefore, calculating the expression above, remembering that cos 30° = 0.866, we arrive at the result of the resulting phasor, or
eq. 106-01
Therefore, we conclude that the resulting phasor is, in module, equal to 1.5 Bmax. It should be noted that for ωt = 0° the resulting phasor makes an angle of 90° with the horizontal.
Now, let's calculate the resulting phasor for values of ωt other than zero. Enjoy Figure 106-03
where we show the formation of the resulting phasor for ωt = 30°, ωt = 60° and ωt = 90°. Notice that regardless of the considered angle, the resulting phasor value, BR, in module, is always equal to 1.5Bmax. But, the reader should be aware of the fact that the resulting phasor anglechanges to as we increase the viewing angle. And more: since we are using the sequence direct or positive, notice that the resulting phasor is rotating clockwise. We easily conclude that if we use the sequence inverse or
negative, the resulting phasor rotates counterclockwise.
Some authors, in their books, want to show that the resulting phasor BR rotates counterclockwise.
Although they define the phases in direct sequence, when preparing the graph they use the inverse sequence, as this sequence is what allows the resulting phasor to be counterclockwise. On this site, we chose to show that with the direct sequence the resulting phasor
rotates clockwise.
Keep in mind that to find the resulting phasor value for ωt = 30°, we use trigonometry, remembering that
| - BB | = Bmax, BC = 0.5 Bmax and
BA = 0.5 Bmax. So we can write
BR = Bmax + 0.5 Bmax cos (60°) +
0.5 Bmax cos (60°)
Taking into account that 0.5 Bmax cos (60°) = 0.25 Bmax, then the
end result is
eq. 106-01
That is, once again we find that the module of the resulting phasor has a constant value equal to 1.5 Bmax .

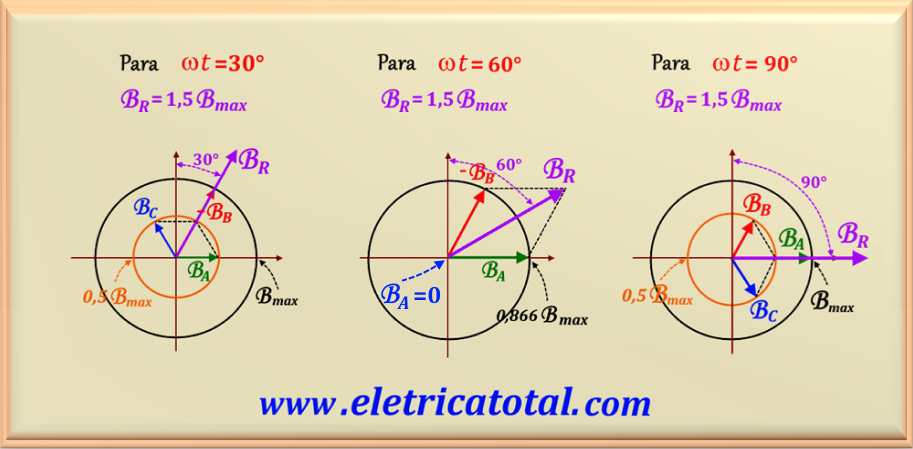

Figure 106-03

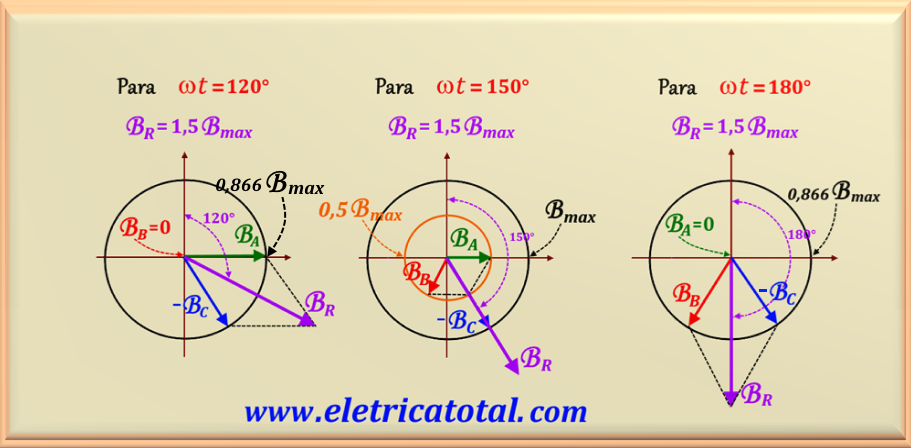

In Figure 106-04 we are showing the formation of the rotating phasor when ωt = 120°, ωt = 150° and ωt = 180°. From this moment on, we will present the graphs of the formation of the rotating phasor, without much explanation additional, as the graphics themselves are self-explanatory. For didactic reasons, and because this subject is not included in the most books dealing with machines, we will show all twelve graphs so that the reader understands how to process the
formation of the rotating field. It is extremely important to understand this part so that the reader can understand how a machine can enter the rotation process.
Figure 106-04

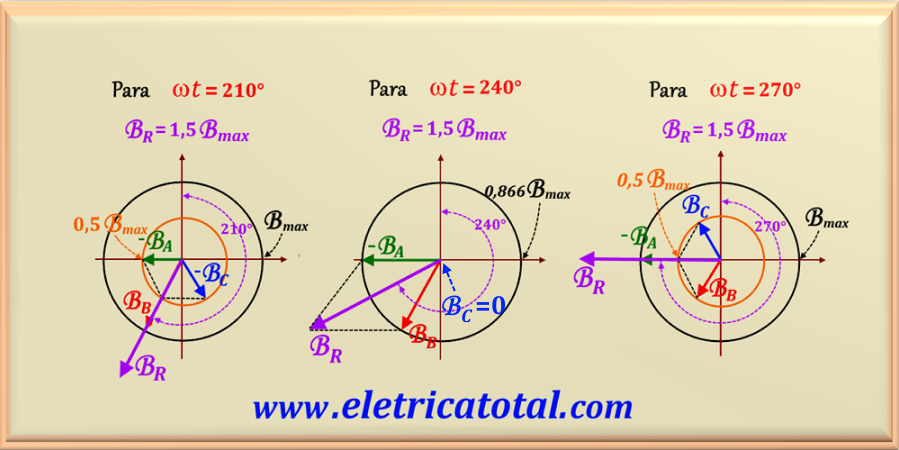

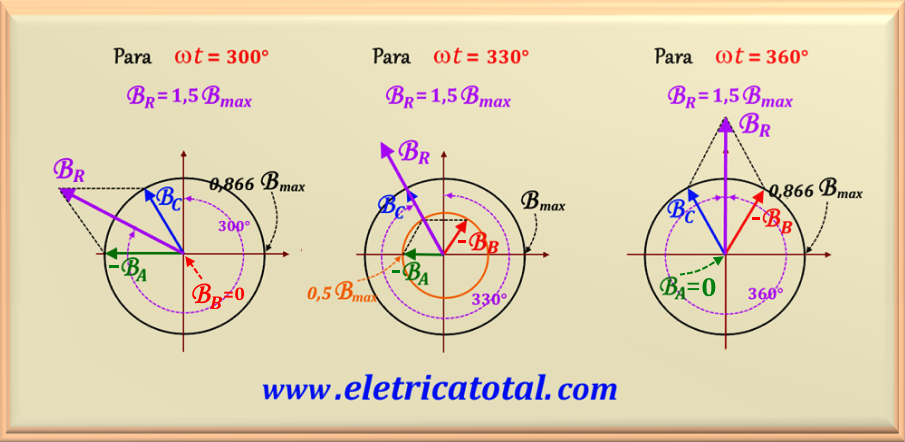

Figure 106-05 Figure 106-06
In fact, we present 13 graphs, including the one for ωt = 360° so that the reader will notice that the first and tenth third graph are absolutely the same, showing a complete turn of the rotating phasor. For subsequent angles there will be
a repeat of the above. Keep in mind that here are the thirteen main angles for a complete understanding of how the resulting phasor rotates 360°. It is clear that for a power system operating at a frequency 60 Hz, the rotating phasor will perform 60 full turns per second. If the frequency were 50 Hz then
that would be 50 full turns per second. And so on.
As we stated earlier in item 3(to see click here!), the synchronous motor does not have the capacity starting simply by applying the working voltages. Remember that the synchronous motor rotor is made up of several silicon-iron sheets juxtaposed to form a considerable volume. As a consequence, this rotor has a reasonable value mass. This creates a moment of inertia. And, as we know, to change the inertia of a body we must apply a force in an appropriate way. The greater the moment of inertia, the greater the value of the force must be.
Imagine a synchronous motor at rest. We connect a DC voltage in the field winding and a three-phase set of AC voltages in the stator winding producing a three-phase magnetic flow of currents in the windings. As we studied in the previous item, this procedure will create a rotating uniform magnetic induction field, which we will call BS. Thus, there are two magnetic fields present in the machine and the rotor field will tend to line up with the stator field. As the stator's magnetic field is rotating, the rotor's magnetic field (and the rotor itself) will constantly try to line up. The greater the angle between the two magnetic fields (up to a certain maximum value), the greater the torque on the machine rotor.
The motor rotor is stationary and, therefore, the magnetic field produced by the rotor, which we will call BR, is stationary. The magnetic field BS of the stator is rotating
inside the motor at synchronous speed. However, the synchronous motor fails to start. Why?

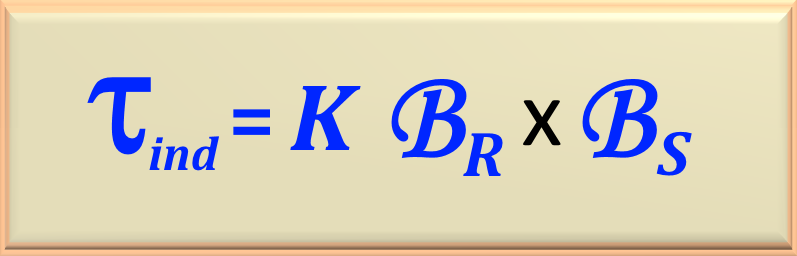

To understand what is happening, let's analyze the equation of the torque induced in the machine by the two existing magnetic fields. The equation is shown below. See eq. 106-02.
eq. 106-02
Where the variables involved are:
τind - Torque induced in the machine;
K - Constructive machine constant;
BR - Magnetic induction field of the rotor;
BS - Stator magnetic induction field.

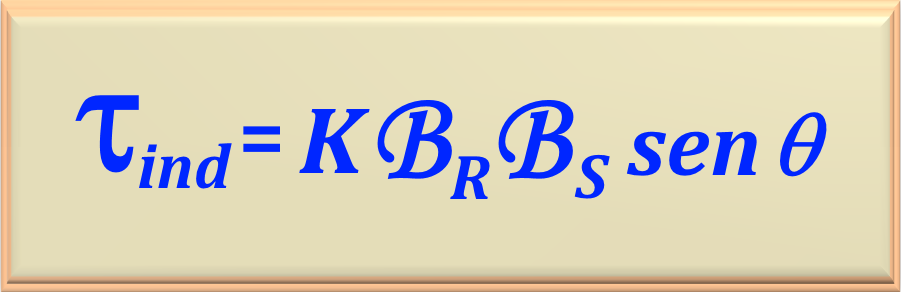

Notice that in this equation, there is a cross product. The eq. 106-03 presents this same equation in its scalar form.
eq. 106-03
Where the variables involved are:
τind - Torque induced in the machine;
K - Constructive machine constant;
BR - Magnetic induction field of the rotor;
BS - Stator magnetic induction field.
θ - Angle between BR and BS

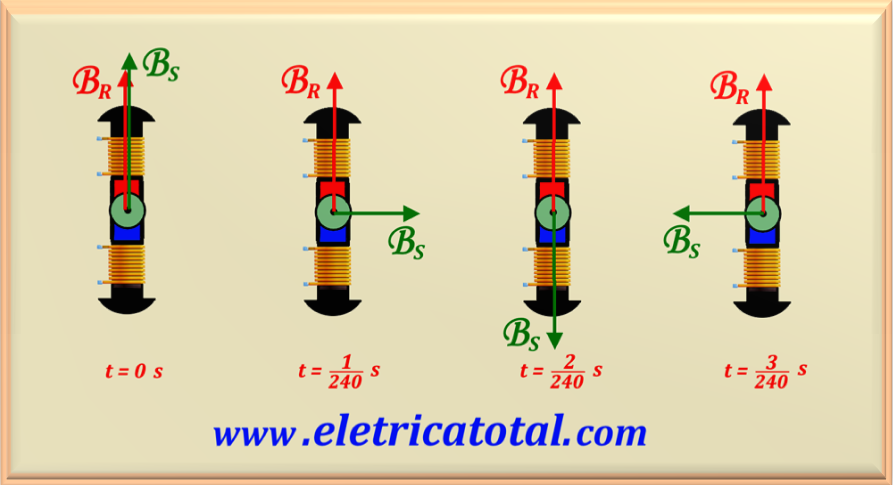

Figure 106-07
Let's start our analysis by assuming a network with a frequency of 60 Hz and looking at Figure 106-07.
In this figure we show the rotor with its field winding and the phase shift between the magnetic induction field of the rotor, BR,
and the stator magnetic induction field, BS, for different instants of time. We are assuming that the machine rotor is stopped.
At the instant t = 0 s, when we connect the voltages in the windings, we have the two field phasors aligned, that is, the angle between them is
0°. To calculate the induced torque we use the eq. 106-03. However, we know that sin 0° = 0. Soon, we conclude that the value of the
induced torque, at that instant, is null.
At the instant t = 1/240 s, the stator field, BS, is 90° ahead of the field
of the rotor BR. In this case, sin 90° = 1 and we have an induced torque. According to the right hand rule, torque
is entering the page.
For the case t = 2/240 s, we see that the angle between the two phasors is 180°. And since sin 180° = 0,
then the torque is
null.
And at the instant t = 3/240 s, the angle between the phasors is 270° and as sin 270° = -1 , then we have a torque
induced and according to the right hand rule the torque is leaving the page.
After this analysis, we realized that the times are very short and it is not possible for the rotor to follow the phasor speed of the field
stator induction. And as a consequence of what was said above, we can say that in an electric cycle the average torque can be considered
null. As a result, the engine vibrates, does not produce any turning, and furthermore, it overheats.
So the question is:
How to start a synchronous motor ?
To answer this question, there are three alternatives as described below.
Stator magnetic induction field speed reduction;
Use an external prime mover;
Use damper windings.
We will study separately each of the alternatives.
If the magnetic field of the stator of a synchronous motor rotates at a low enough speed, there will be no problem for the
rotor accelerates and synchronizes with the magnetic field. The speed of the stator magnetic field can
then be gradually increased until reaching a speed close to the synchronism speed. During this process, you should not place
load on the motor shaft. From that moment on, it is possible to turn off the variable frequency system and turn on the winding of the
stator to the three-phase power system. It is now possible to add load to the motor shaft.
Currently, solid-state motor controllers can be used to convert a constant input frequency into any
desired output frequency. With the development of modern variable frequency drive packages in
solid state, it became perfectly possible to continuously control the electrical frequency applied to the motor, running
all values from a fraction of a hertz to above the full nominal frequency. if
such a variable frequency drive unit is included in a drive circuit.
motor control to have speed control, synchronous motor starting becomes very easy. Just adjust the frequency
for a very low starting value
and then raise it to the desired operating frequency for normal operation.
When a synchronous motor operates at a speed lower than the rated speed, its internal generated voltage
EA will be smaller than normal. if the value
of EA is reduced, then the terminal voltage applied to the motor must also be
reduced to keep stator current at safe levels. The voltage at any
variable frequency drive or starter circuit should vary approximately linearly with the applied frequency.
The frequency converter is a high cost unit and we must carefully analyze its use. However, if the synchronous motor
have to operate at variable speeds, this method is recommended.
The second method of starting a synchronous motor is by coupling it to a motor
external starting and driving the synchronous machine to rated speed with the external motor. Next, the synchronous machine can be
placed in parallel with the power system as a generator and the starter motor can be decoupled from the machine shaft. Upon reaching rated speed, the match can be turned off. Once the parallel input is complete, then the motor
synchronous can receive load in the normal way.
The starter only needs to overcome the inertia of the machine
synchronous to empty. No load is applied until the motor is paralleled with the
power system. As only the inertia of the motor needs to be overcome, the
starter may have a much lower rated characteristic than that of the synchronous motor
which he is starting.
In many synchronous motors, from medium to large, an external motor
of starting or the use of the exciter may be the only possible solutions, because the
power systems to which they are connected are not capable of handling the
inrush currents necessary for damper windings to be
used. Damper windings are our next topic.
The most popular way to start a synchronous motor is to use damper windings. These windings are special bars placed in slots cut into the rotor face of a synchronous motor and then short-circuited at each end by a large short circuit ring.
Assume initially that the main field winding of the rotor is off and that a three-phase set of voltages is applied
to the stator winding of that machine.
When power is initially applied at time t = 0 s, assume that the induction field
BS is vertical. When the magnetic induction field BS
rotates counterclockwise, it induces a voltage in the damper winding bars that is given by eq. 106-04.

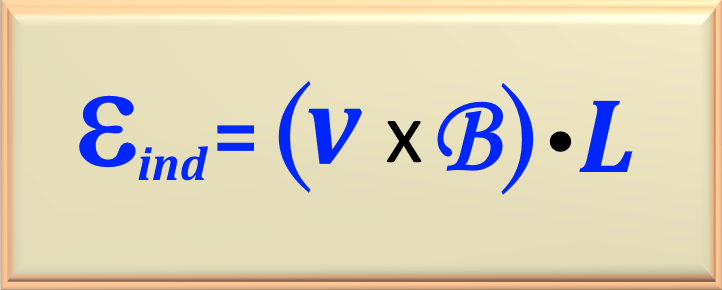

eq. 106-04
Where the variables involved are:
εind - Voltage induced in the bar;
v - Speed of the bar relative to the magnetic induction field;
B - Magnetic induction field;
L - Length of the bar immersed in the magnetic induction field.
Thus, when the rotor is turning, it induces a voltage between the ends of the bar. This voltage on the bars generates a current that will produce a magnetic induction field, which we will call BW, which will interact with
the stator magnetic induction field. In this way, a resultant induced torque will appear in the bars (and in the rotor) in the direction counter-clockwise. The value of the conjugate is given by eq. 106-02, already studied (above). Continuing with the analysis, we conclude that, sometimes the magnetic induction field is null, sometimes it is different from zero, but it always points in the same direction. That
causes the average torque on the rotor to be different from zero. Therefore, the rotor is able to come out of rest and gain
velocity. It is important to understand that the rotor cannot reach synchronous speed, because if the rotor is rotating at
same speed as the stator magnetic induction field, the relative speed between the rotor and BS
is zero. Now, if the relative velocity is null, then by eq. 106-04 the voltage induced in the bars will be
null, not generating the magnetic induction field BW. Obviously, by eq. 106-02 the torque will be null and there will be no reason for the rotor to keep turning.
In a real machine, the field winding circuits cannot be open-circuited
during the starting procedure, because in that case, very high voltages
would be produced in them during the match. If the field windings
are short-circuited during start-up, dangerous voltages will not be produced and, in reality, the field current
induced in it will contribute with an additional torque to the starting of the motor.
It is then possible to start a synchronous motor with damper bars following this procedure:
1 -Disconnect the field windings from your DC power source and place them
short-circuited.
2 - Apply a three-phase voltage to the motor stator and let the rotor accelerate until
close to synchronous speed. No load should be applied to the
motor shaft, so that its speed can approach synchronous speed as close
as possible.
3 - Connect the DC field circuit to your power source. After doing this, the engine
will reach synchronous speed and then loads can be applied to its shaft.
One of the important features of damper windings is a significant improvement in the stability of the motor. The stator magnetic field rotates at a constant speed nsinc, which changes
only if the system frequency suffers some variation. If the rotor rotates at speed nsync,
the damper windings will not have any induced voltage. If the rotor turns
slower than nsync, then there will be relative motion between the rotor and the field
stator magnetic field and a voltage will be induced in the windings. This voltage produces a current flow, which produces a field
magnetic.
The interaction of the two
magnetic fields produce a torque that tends to increase the speed of the machine again. On the other hand, if the rotor turns
faster than the field
of the stator, then a torque will be produced that will try to reduce the rotor speed. So, the conjugate
produced by damper windings speeds up slow machines and slows down fast machines.
Therefore, these windings tend to dampen the load and other transients
of the machine. For this reason, these windings are called windings
shock absorbers. Such windings are also used in synchronous generators that
operate in parallel with other infinite bus generators.In this case, the windings are used in a similar function of
stabilization. If there is a torque variation on the generator shaft, its rotor will momentarily accelerate or
will slow down and these changes will be opposed by the damper windings.
These windings improve the overall stability of power systems by reducing power and torque transients.
The damper windings are responsible for the majority of the subtransient current of a synchronous machine in idle condition.
electrical fault. a short circuit
across the terminals of a generator is simply another form of transient and the
damper windings react very quickly to it.
A synchronous motor is the same as a synchronous generator in all respects, except that the direction of power flow is
inverted. How is this sense
inverted, it can be expected that the direction of current flow in the stator will also be
inverted. Therefore, the equivalent circuit of a synchronous motor is exactly the same as the equivalent circuit of a generator
synchronous, except for the fact that the direction
Ia reference to be inverted. In Figure 106-08 we can see the equivalent circuit of a motor
synchronous.
Figure 106-08
Of course, a synchronous motor can be connected in delta or star configuration. As Ia
changed its meaning, so the equations that govern the synchronous motor also change the sign. Then, we have:

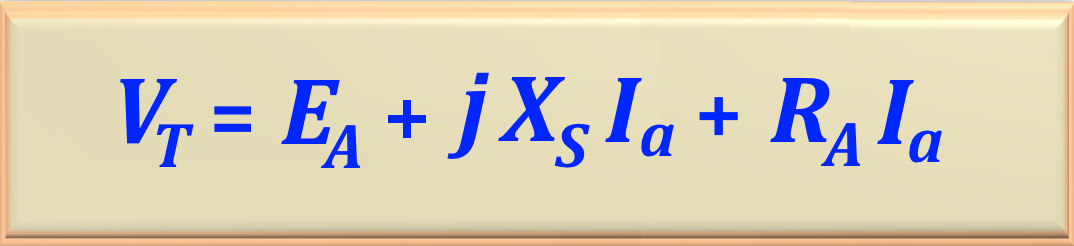

eq. 106-05
eq. 106-06
That is, they are the same equations studied for a synchronous generator, differing only by the sign of the current term.
And to determine the value of Ia, starting from eq. 106-05 we arrive at eq. 106-07, below.
eq. 106-07

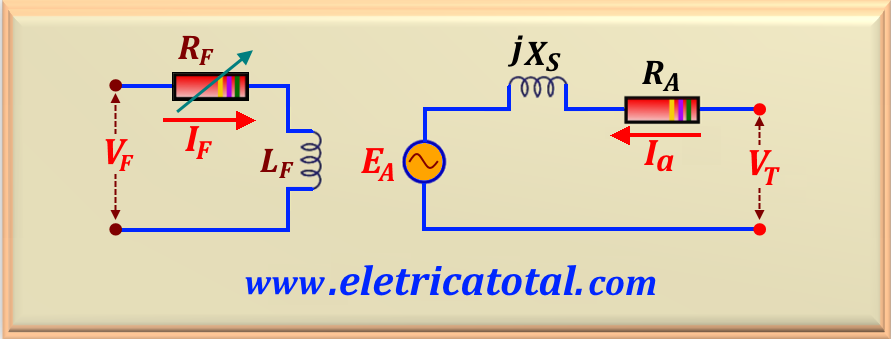

The electrical model of a synchronous motor is the same as that of a synchronous generator, differing by the direction of current
Ia, as this is opposite in the engine. To see the model in more detail
click here!.

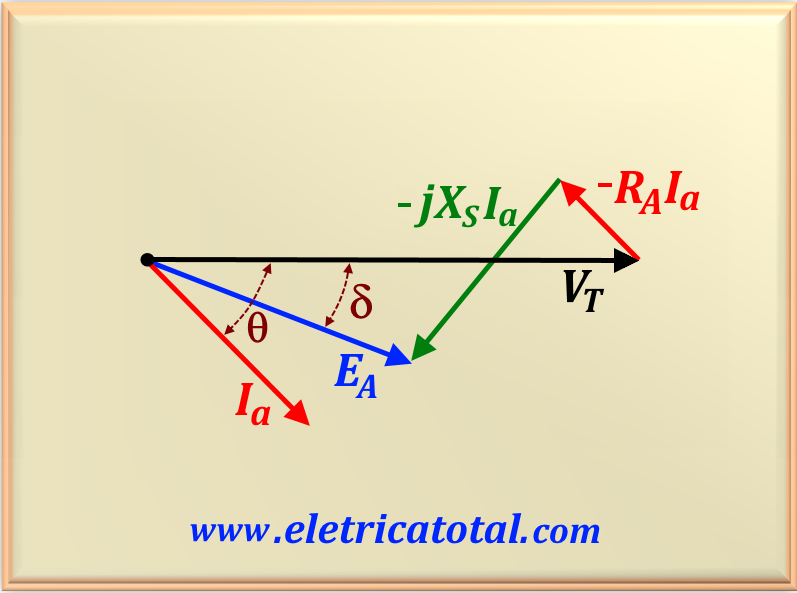

Based on Figure 106-08 we can draw a phasor diagram of the synchronous motor as shown in
Figure 106-09.
Figure 106-09
Based on the phasor diagram shown in Figure 106-09 we can write that:
eq. 106-08
Note that eq.106-08 is an alternative form of eq.106-06. The diagram above shows that the power angle is
negative and, consequently, the real or active power is also negative, meaning that the machine absorbs power
from the power supply. It is easy to conclude that the smaller the power angle, δ, the smaller will be the transfer of
real power.
Synchronous motors supply power to loads, which are basically devices that run at constant speed. Usually,
engines are connected to power systems that are much larger than themselves, so the
Power systems act as infinite buses for motors.
This means that the terminal voltage and system frequency will be constant regardless of the amount of power
demanded by the engine. The rotation speed of the
motor is synchronized with the rate of rotation of the magnetic fields and, in turn,
the rate of rotation of the applied magnetic fields is synchronized with the applied electrical frequency, so that the speed of the motor
synchronous will be constant regardless of the load.

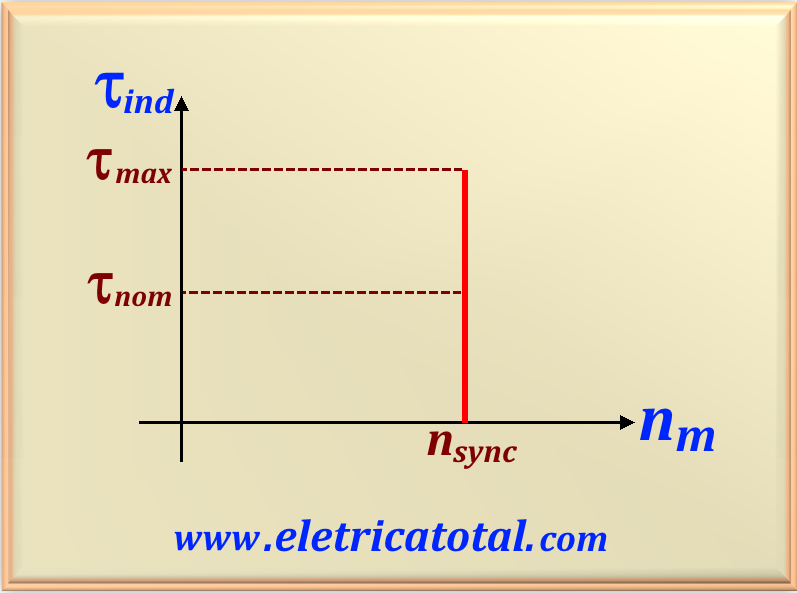

The torque versus speed characteristic curve is shown in Figure 106-10. The steady state speed of the engine
is constant from no-load to the maximum torque that the motor can supply,
so that the speed regulation of that motor is 0 %.
Figure 106-10
The torque in a synchronous motor is given by eq. 106-09. Note that the torque is directly proportional to the sine of the
power angle, δ.
eq. 106-09
Note by eq. 106-09, that the maximum torque occurs when the power angle δ is equal
a 90°, because sin 90° = 1. However, the normal conjugates to
full load are much lower than this value. In fact, the maximum torque can be
typically three times the full load torque of the machine.
When the shaft torque of a synchronous motor exceeds the maximum torque, the rotor may lose synchronism with
stator and net magnetic fields. Instead, the rotor begins to slip, lagging behind. The loss of sync
after the maximum torque is exceeded it is known as sliding poles.

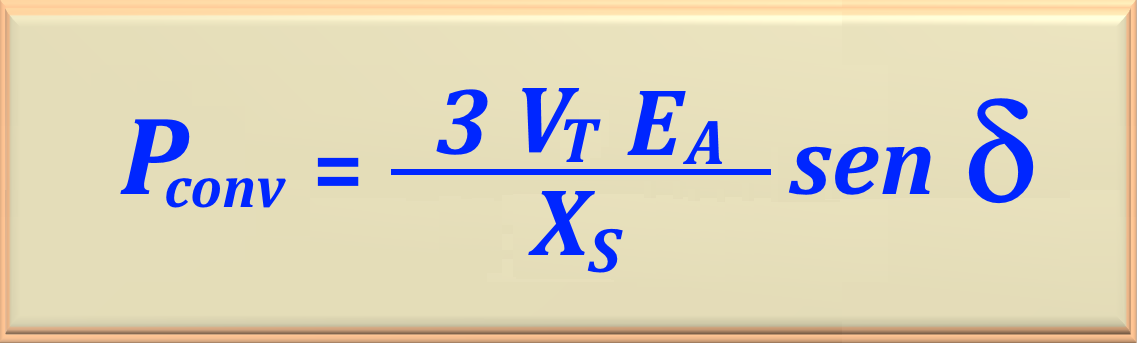

From eq. 106-09 and based on the relationship of eq. 105-08 (see here!), we can write the equation that calculates the power converted into mechanical power on the axis of the synchronous motor. Look
the eq. 106-10, below.
eq. 106-10
We know that the greater the field current IF, the greater the induced voltage EA and,
consequently, the greater the torque developed by the motor. This is what tells us eq. 106-09. Thus, it is possible to conclude
that there are advantages, from the point of view of stability, when working with high field currents IF or,
consequently, with high induced voltage EA.

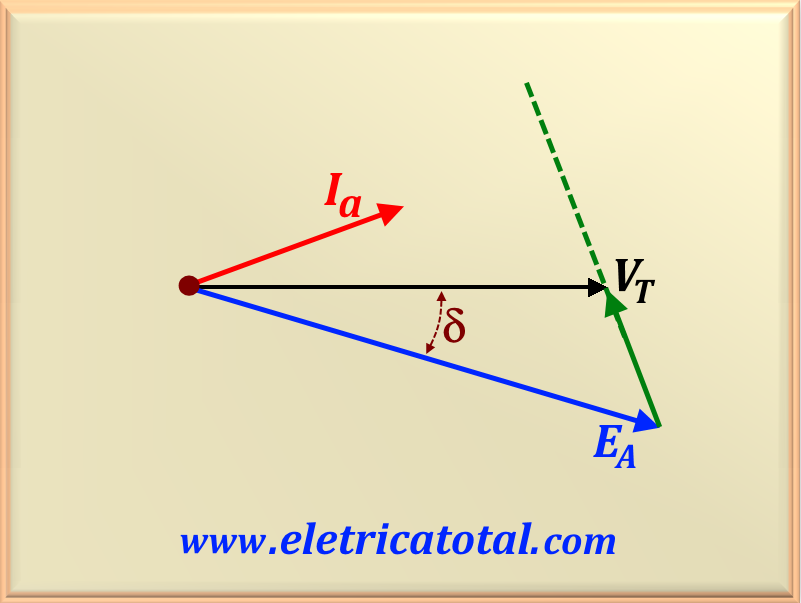

Let's assume a synchronous motor running at synchronous speed with a given load, initially with a leading power factor, as shown in
Figure 106-11. In this case, the motor develops enough torque to keep the system
rotating at synchronous speed.
Figure 106-11
Now, let's assume that there was an increase in the load coupled to the motor shaft. Initially, the motor will reduce its speed.
By doing so, the δ torque angle becomes larger and the induced torque increases. the increment
in the induced torque will accelerate the motor, which will turn again at synchronous speed,
but with a larger conjugate angle.

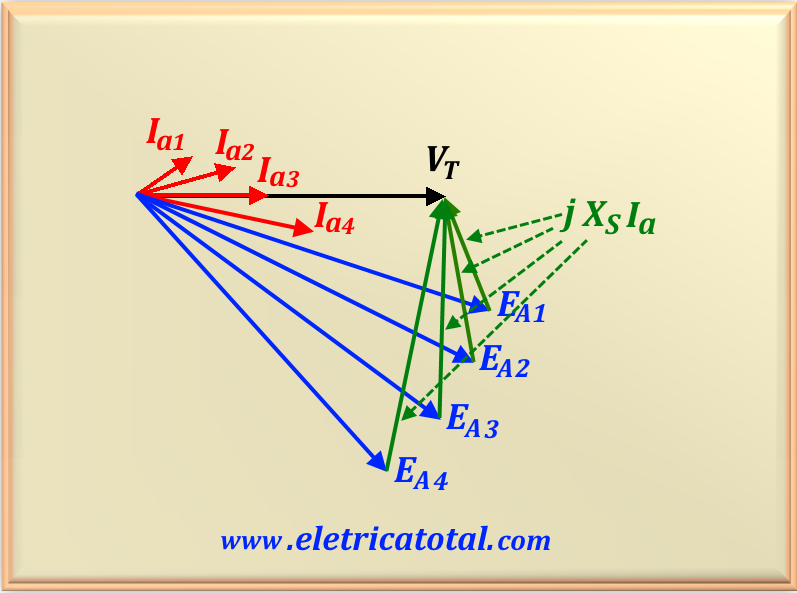

The generated internal voltage EA, given by eq. 102-02 (see here!), shows
that the internal voltage only depends on the field current (since it has an influence on the Φ flow value) and the machine speed.
The velocity
is conditioned to be constant by the supply system and, as there were no changes in the field circuit, the field current
is also constant. Therefore, |EA| must be constant when the load changes. In the graph shown in Figure 106-12, the lengths proportional to the power (EA sin δ and Ia cos θ) will increase, but the modulus of EA should remain constant. When the load increases,
EA moves down as shown in the graph. When EA moves further and
further down, the term j XS Ia must increase so that it can go from the end of EA
up to VT and consequently the armature current Ia will also increase. Watch
that the angle θ (angle between Ia and VT) of power factor also changes, becoming increasingly
less early and then more and more late.
Figure 106-12
From everything that has been presented here, it can be concluded about the effects of the increase in load, under conditions of excitation
constant (disregarding the effects of the armature reaction), that:
1 - As the mechanical load grows, the armature current Ia increases, regardless of excitation.
2 - If the synchronous motor is overexcited or underexcited, its power factor tends to approach unity.
with the increase of the load.
3 - When the motor is over- or under-excited, the change in power factor is greater than the change in armature current
Ia with the application of the load.
4 - When the motor is normally excited, the variation in armature current Ia
is greater than the change in power factor when increasing the load, and the power factor tends to increase
the most lagging armature current.

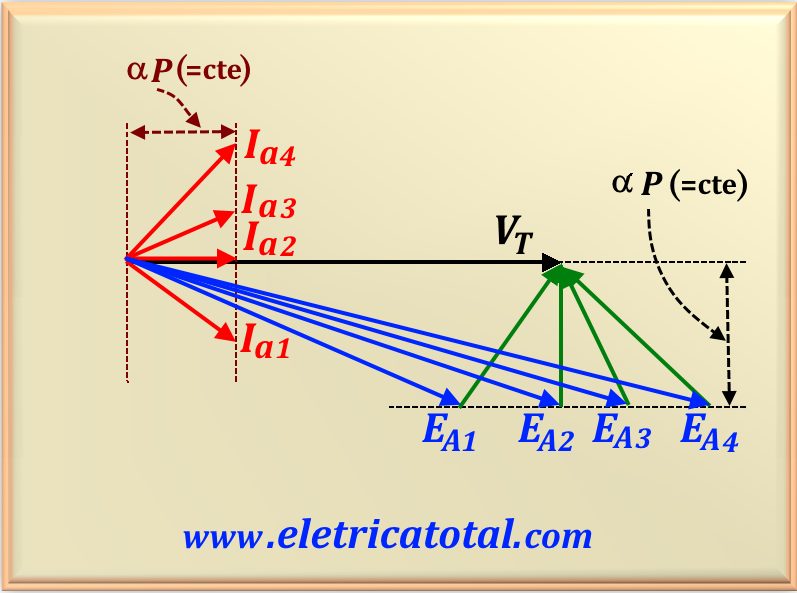

In a synchronous motor there is another magnitude that can be adjusted easily, namely its field current. Let's imagine
a synchronous motor initially operating with a lagging power factor, situation 1 as shown in Figure 106-13.
Now let's increase the field current and see what happens. Note that an increase in the field current generates a rise in the module
of EA, but does not affect the active power delivered to the engine.
The power delivered to the motor changes only when the
load varies. Since a change in IF does not affect the speed of the motor shaft
and, as the load coupled to the shaft does not change, the supplied active power does not change.
Of course, VT is also constant, because it's kept that way by the power source that powers the motor. The power proportional lengths
in the diagram
phasorial (EA sin δ and Ia cos θ) must therefore be constants. When the current of
field is increased, the voltage EA must increase, but it can only do this by following the
constant power line. This effect is shown in Figure 106-13.
Figure 106-13
Under-excited Synchronous Motor
When the internal voltage phasor projection EA onto VT (EA cos δ) is smaller
than VT itself, a synchronous motor has an armature current delayed and consumes reactive power Q. In this case, the
field current IF is small and we say that the motor is underexcited.
This means that the synchronous motor is a combination of inductor and resistor (case of EA1 and
Ia1 in the graph above).
Over-excited Synchronous Motor
When the internal voltage phasor projection EA onto VT (EA cos δ) is greater than
VT itself, a synchronous motor has an armature current lead and consumes negative reactive power -Q or, what is the same thing,
supplies reactive power Q to the system. In this case, the field current IF is large and we say that the motor is over-excited.
This means that the synchronous motor is a combination of capacitor and resistor (case of EA3 and
Ia3 in the graph above).
Synchronous Motor with Normal Excitation
When the internal voltage phasor projection EA onto VT (EA cos δ) is equal to
VT, a synchronous motor has an armature current at phase with VT, and consumes active power P.
In this case, the field current IF is at an intermediate value between the two previous cases.
This means that the synchronous motor is operating as a resistor (case of EA2 and
Ia2 in the graph above).
Final considerations
A plot of Ia versus IF for a synchronous motor is shown in Figure 106-14 .
This graph is called the V curve of a synchronous motor, for the obvious reason that its shape is like the letter V.
Figure 106-14
There are several V-curves drawn, corresponding to
different levels of active power. For each curve, the minimum armature current Ia
occurs with unity power factor, when only active power is being
supplied to the engine. At any other point on the curve, some reactive power is also being supplied to or from the motor. For smaller field currents
than the value corresponding to Ia minimum, the armature current is lagging,
consuming reactive power Q. For field currents greater than the value corresponding to Ia
minimum, the armature current is leading, providing reactive power Q to the power system,
like a capacitor would. Therefore, controlling the field current of a synchronous motor, we will be able to control the supplied reactive power or
consumed by the power system.
A synchronous motor, purchased to drive a load, can be operated over-excited in order to supply power.
reactive Q for a power system. In
In fact, in the past, a synchronous motor was bought to run without load, simply to perform power factor correction. The phasor diagram of a synchronous motor, running over-excited at no-load, is shown in Figure 106-15.

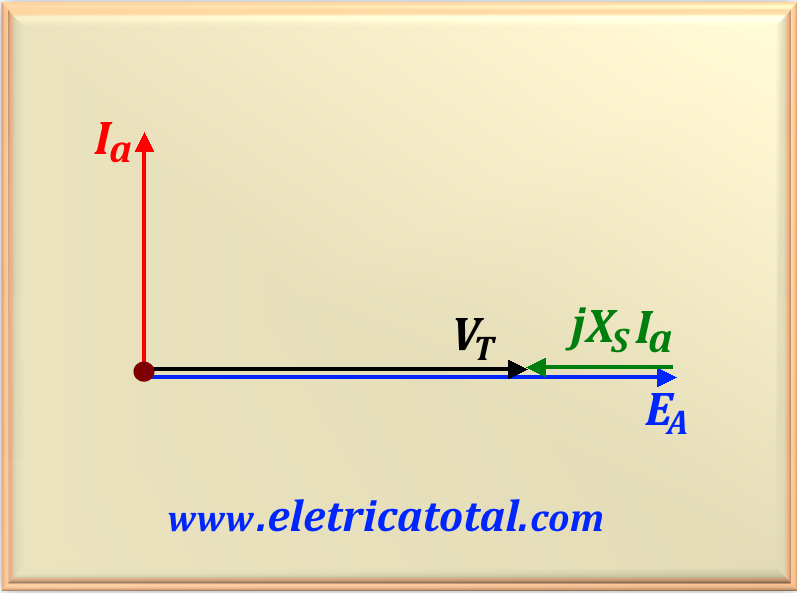

Figure 106-15
Since there is no power being drawn from the motor, the proportional phasor lengths
to the power (EA sin δ and Ia cos θ) are null. We know that from Kirchhoff's voltage law for a motor
synchronous, considering that XS >> Ra, is given by:
eq. 106-11
The term j XS Ia will point to the left and therefore the armature current Ia sub>
will point up. If VT and Ia are examined, the voltage and current relationship between them
it will be like that of a capacitor. From a power system point of view, an engine
synchronous to empty overexcited looks exactly like a big capacitor.
Some synchronous motors used to be sold specifically for power factor correction. These machines had axles that didn't even come out.
of the engine frame and no load could be attached to them, even if that
was desired. These special purpose synchronous motors were often
called synchronous capacitors.
Currently, conventional static capacitors are more cost-effective to buy and use than synchronous capacitors. Nonetheless,
some synchronous capacitors may still be in use in older industrial installations.
