Problem 34-1    Source:   Problem elaborated by the author of the site.

In the circuit shown in Figure 34-01.1, determine the parameters "g".

Problema 34-2    Fonte:    Question 2 - Test of the School of Engineering of UFRGS - 1976.

In the circuit shown in Figure 34-02.1, determine the parameters "g"

Problem 34-3   Source:   Adapted from Problem 13 of the Quadripoles section of the list of Electric Circuits I, from the UFRGS School of Engineering, 2011, Prof. Dr. Valner Brusamarello.

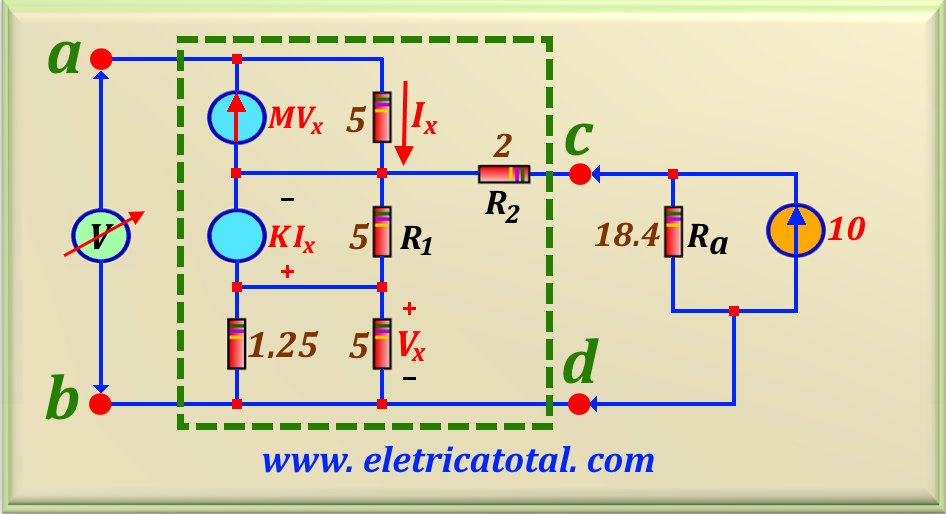

In the circuit shown in Figure 34-3.1 the voltmeter reads 4.8 V between points a - b. It is known that the power supplied by 10 A current source is 368 W. In this situation, determine:

a) the values of K and M :

b) the parameters "g" of the quadripole.
