Problem 13-10 Source:
Problem elaborated by the author of the site.
For the circuit shown in the Figure 13-10.1, determine the currents in the circuit.
Solution of the Problem 13-10 -
Kirchhoff's Method
By using the mesh voltage method ( Kirchhoff's law ) we know that in a closed circuit the algebraic sum of

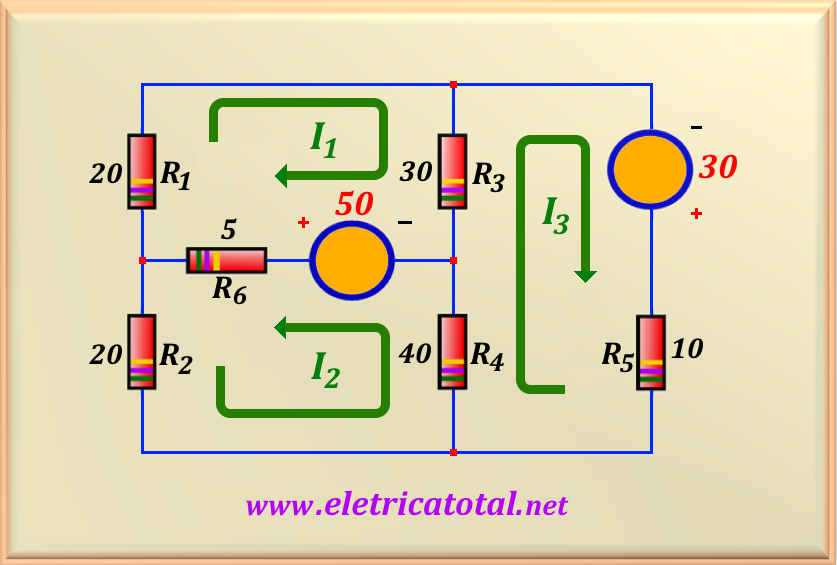

the voltages must be equal to ZERO . In the previous figure, we see the redrawn circuit where we show the
direction of the currents I1, I2
and I3. So
Therefore, we have a system of three equations with three unknowns, which will
be solved using the Octave program. So the solution is:
