Problem 2.1  Source:   Problem elaborated by the author of the site.

Knowing that copper resistivity is 1.69 x 10 ^-2 ohms. mm ² / m and that of aluminum is 2.75 x 10 ^-2 ohms. mm ² / m , what should be the relationship between the areas of the copper and aluminum to have the same resistance, considering the wires with the same length?

Problem solving:   click here!

Problem 2.2  Source:   Problem 17 - page 161 -    HALLIDAY, RESNICK, WALKER, Jearl - Book: Fundamentos de Física - Vol 3 - Ed. LTC - 8ª edição - 2009.

An electric wire has 1.0 mm in diameter, 2.0 m in length and a resistance of 50 mΩ. What is the resistivity of the material?

Problem solving:   click here!

Problem 2.3  Source:   Problem 18 - page 161 -    HALLIDAY, RESNICK, WALKER, Jearl - Book: Fundamentos de Física - Vol 3 - Ed. LTC - 8ª edição - 2009.

A certain wire has a resistance R. What is the resistance of a second wire, made of the same material, with half of the length and half of the diameter?

Problem solving:   click here!

Problem 2.4  Source:   Problem 21 - page 161 -    HALLIDAY, RESNICK, WALKER, Jearl - Book: Fundamentos de Física - Vol 3 - Ed. LTC - 8ª edição - 2009.

A wire with a resistance of 6.0 ohms is stretched in such a way that its length makes it three times larger than the original. Determine the wire resistance after operation assuming that the resistivity and density of the material remain unchanged.

Problem solving:   click here!

Problem 2.5   Source:   Problem elaborated by the author of the site.

Calculate the equivalent resistance R_eq, between the a-b points of the circuit shown in Figure 02-05.1.

Problem solving:   click here!

Problem 2.6   Source:   Problem elaborated by the author of the site.

In the circuit shown in Figure 02-06.1 find the equivalent resistance seen from the terminals a-b.

Problem solving:   click here!

Problem 2.7   Source:   Problem elaborated by the author of the site.

Calculate the equivalent resistance between the points a-b of the circuit shown in Figure 02-07.1.

Problem solving:   click here!

Problem 2.8   Source:   Problem elaborated by the author of the site.

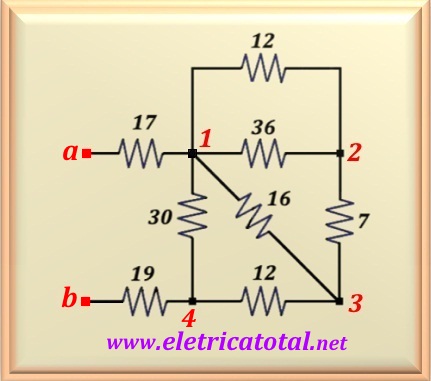

Calculate the equivalent resistance between the points a-b of the circuit shown in Figure 02-08.1.

Problem solving:   click here!

Problem 2.9   Source:   Problem elaborated by the author of the site.

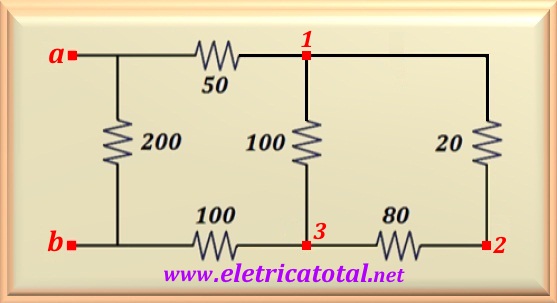

Calculate the equivalent resistance between the points a-b of the circuit shown in Figure 02-09.1.

Problem solving:   click here!

Problem 2.10   Source:   Problem elaborated by the author of the site.

Calculate the equivalent resistance between the points A-B of the circuit shown in Figure 02-10.1.

Problem solving:   click here!

Problem 2.11   Source:   Problem elaborated by the author of the site.

Calculate the equivalent resistance between the points x-y of the circuit shown in Figure 02-11.1.

Problem solving:   click here!

Problem 2.12   Source:   Problem elaborated by the author of the site.

In the circuit shown in the Figure 02-12.1, find the equivalent resistance between the following terminals:

a) A-D.

b) C-E.

a) B-D when the C-E terminals are short-circuited.

Problem solving:   click here!

Problem 2.13   Source:   Problem elaborated by the author of the site.

Calculate the equivalent resistance between the points A-E of the circuit shown in Figure 02-13.1.

Problem solving:   click here!

Problem 2.14   Source:   Problem elaborated by the author of the site.

Calculate the equivalent resistance between the B-E points by considering the shorted D-E points, as shown in Figure 02-14.1

Problem solving:   click here!

Problem 2.15   Source:   Problem elaborated by the author of the site.

Calculate the resistance that the circuit offers to the V voltage source in the circuit shown in Figure 02-15.1.

Problem solving:   click here!

Problem 2.16   Source:   Institute of Physics - Ufrgs - Basic Eletronic discipline - List of exercises - Prof. Dr. Francis

In the circuit shown in Figure 02-16.1 find the equivalent resistance seen from the terminals a-b when:

a) the c -d terminals are open.

b) the c -d terminals are closed.

Problem solving:   click here!

Problem 2.17   Source:   Problem 3.8b - page 55 - NILSSON & RIEDEL - Book: Circuitos Elétricos - 8ª edição - Ed. Pearson - 2010

Calculate the equivalent resistance between the a-b points of the circuit shown in Figure 02-17.1.

Problem solving:   click here!

Problem 2.18   Source:   Problem elaborated by the author of the site.

Calculate the value of R in the circuit shown in Figure 02-18.1, so that R_ab = R_x.

Problem solving:   click here!

Problema 2.19   Source:   Adapted of the Exercicie 2.31 - page 65 - THOMAS, Roland E. & ROSA, Albert J. & TOUSSAINT, Gregory J. - Book: The Analysis and Design of Linear Circuits - 6ª edição - Ed. John Wiley & Sons, Inc. - 2009.

In the circuit shown in the Figure 02-19.1, find the equivalent resistance between the following terminals:

a) A-B

b) A-C

a) B-D

Problem solving:   click here!

Problem 2.20   Source:   Problem elaborated by the author of the site.

Calculate the equivalent resistance between the a-b points of the circuit shown in Figure 02-20.1.

Problem solving:   click here!
