Problem 53-8
Source: Problem prepared by the site's author.

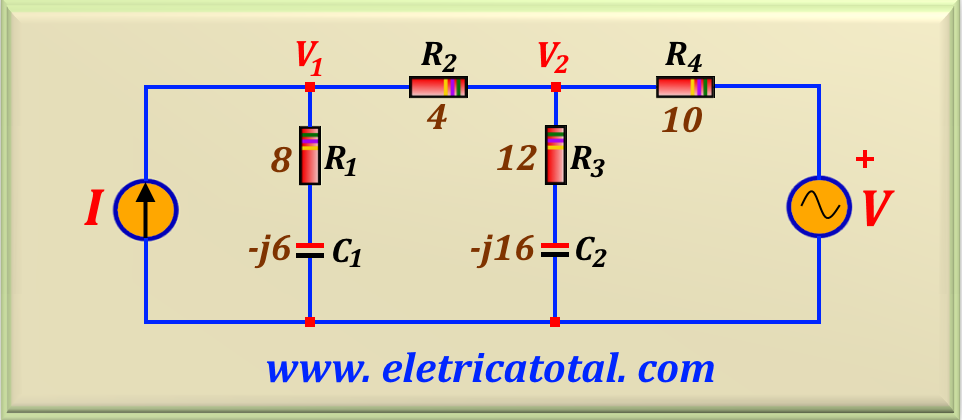

In Figure 53-08.1 we have V = 44 + j42 V and I = 10 + j10 A. Determine V1 and V2.
Solution of the Problem 53-8

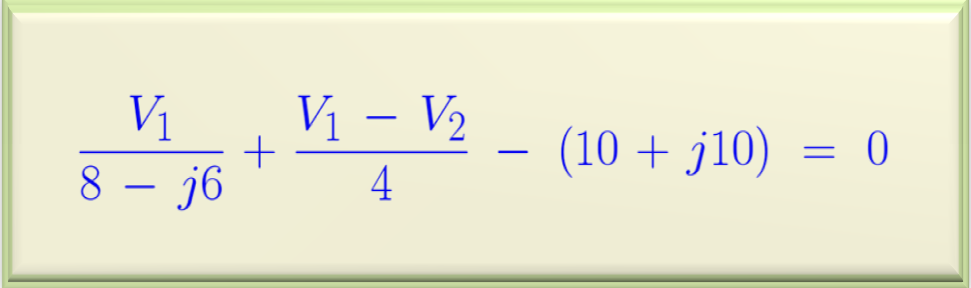

Let's write the equation for node 1 using the nodal voltage method.

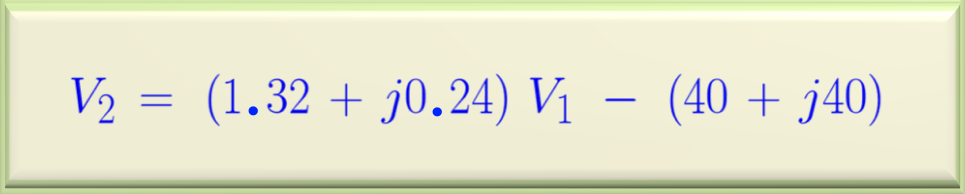

Developing the eq. 53-08.1 let's find a relationship between V1 and V2, or:

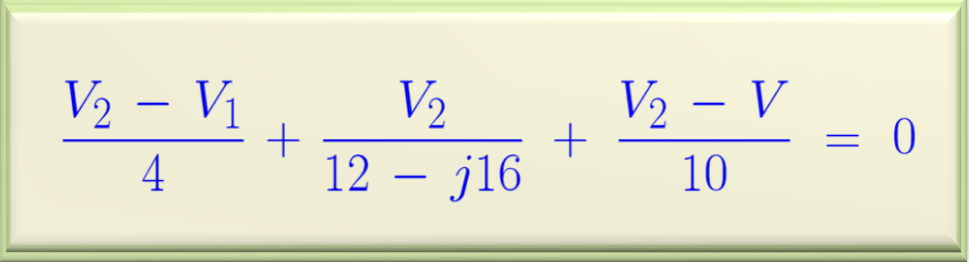

For node 2, using the nodal voltage method, we find
Then substituting eq. 53-08.2 in eq. 53-08.3 and knowing that V = 44 + j42 we find the value of V1, or
Therefore, substituting this value in eq. 53-08.2 we will find the value of V2, or
