Problem 53-1    Source:  Problem elaborated by the author of the site.

In the Figure 53-01.1, where V = 156.2 sin (500 t), determine:

a) the current i.

b) the voltage across the resistor and the capacitor.

c) make a phasor diagram of the circuit.

Problem 53-2    Source:   Problem 4 - RLC Problem List - Discipline Engineering School Electrical Circuits - UFRGS - 2011 - Prof. Dr. Valner Brusamarello.

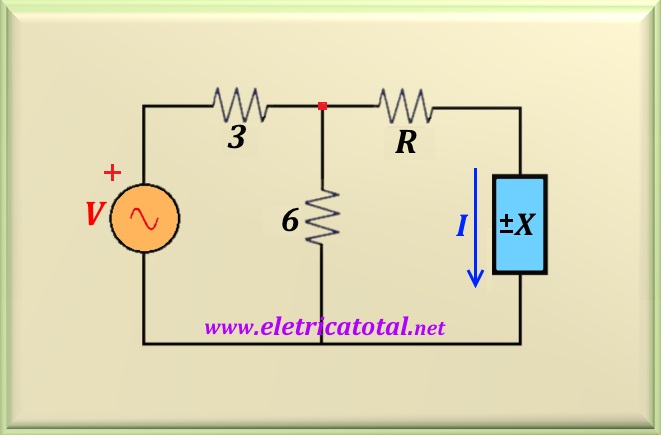

In the circuit of figure, V = - 300 sin (100 t - 20°) and I = 20 sin(100t - 146.9°). Determine R and X.

Attention:    In the Ufrgs list there are some typing errors. In current I, rather than ωt, is 100t. In the drawing the current I is not represented. See circuit above with correction. The answer appears X = C = 1250 uF.   X is the reactance in ohms. C is the capacitance in microfarads. Therefore, the correct answer is: R = 4 Ω,   X = 8 Ω   and    C = 1250 µF.

Problem 53-3    Source:   Problem elaborated by the author of the site.

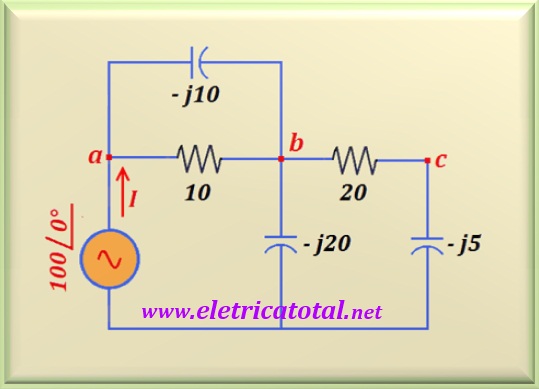

In the figure below, where V = 100 ∠ 0°, determine:

a) the current I.

b) the voltage, V_b, at the point b.

c) the voltage, V_c, at the point c.

Problem 53-4    Source:  Problem developed by the site author.

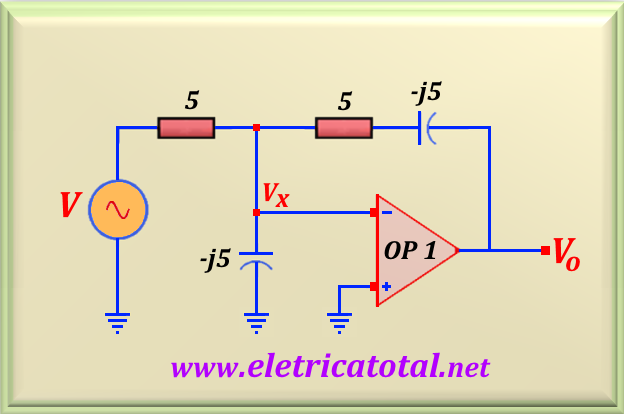

In the Figure 53-4.1 we have V = 2 sin (500 t - 30°). Determine the value of V_o.

Problem 53-5    Source:  Problem developed by the site author.

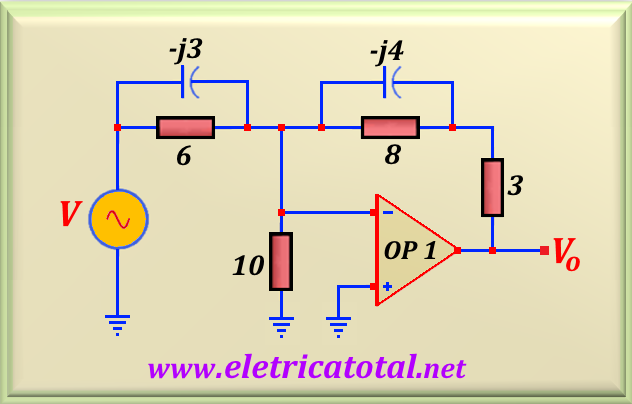

In the Figure 53-5.1 we have V = 4 sin (200 t + 30°). Determine the value of V_o.

Problem 53-6    Source:  Problem prepared by the site's author.

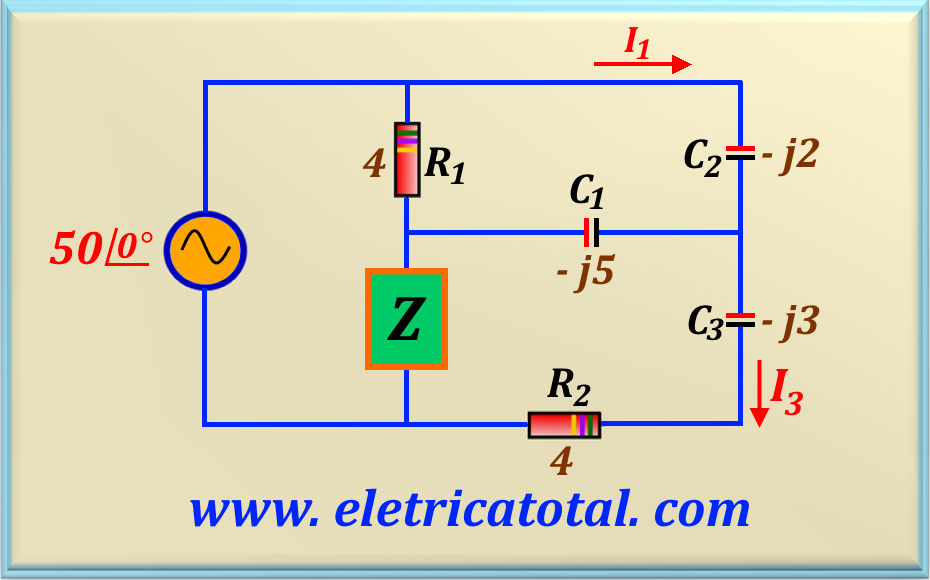

In Figure 53-06.1 we have V = 50∠0° and we know that I₁ = 10∠- 90° . Determine the value of I₃ and Z.

Problem 53-7    Source:  Problem prepared by the site's author.

In Figure 53-07.1 we have V = 200∠0°. Determine the Thévenin equivalent of the circuit from the point of view of the terminals a - b.

Problem 53-8    Source:  Problem prepared by the site's author.

In Figure 53-08.1 we have V = 44 + j42 V and I = 10 + j10 A. Determine V₁ and V₂.
