Problem 17-1
Source:
Problem created by the site's authors.
In the circuit shown in Figure 17-01.1, using the Linearity theorem calculate the current i3.
Solution of the Problem 17-1
To use the Linearity theorem we must provide a numerical value for the current i3. Let us then make i3 = 1 A.
This way, we can calculate the value of e1, or:
With the value of e1 it is possible to calculate the value of the current i2, that is:
Knowing the values of i2 and i3 we can calculate the value of i1 , because:
And now we can calculate the value of the voltage source that generates i3 = 1 A.

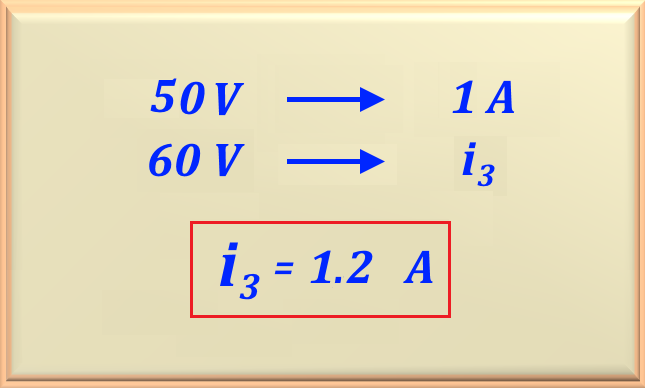

At this point the question to ask is: if a voltage source of 50 V generates a current i3 = 1 A, what will be the current value i3
when the voltage source has its value changed to 60 V? Just use a simple rule of three, or:
