Problem 56-1
Source: Problem elaborated by the author of the site.

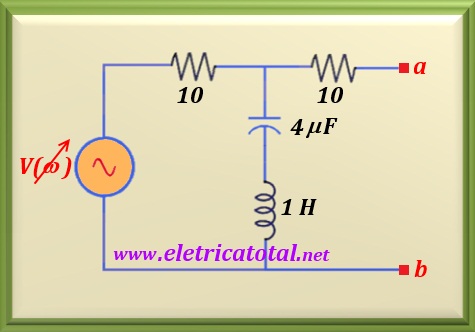

Calculate at what frequency the circuit shown in the Figure 56-1.1
will have the lowest voltage value at the terminals a-b. Make a graphic
showing the values around the rejection frequency.
Solution of the Problem:
click here!
Problem 56-2.
Source: Problem elaborated by the author of the site.

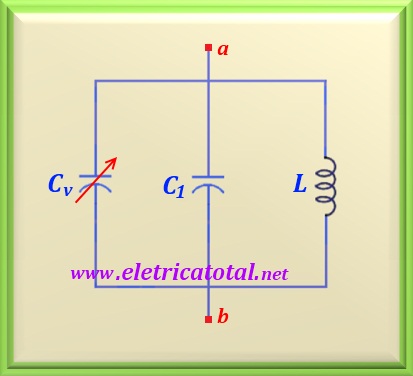

We wish to use an LC parallel circuit, show in Figure 56-2.1, to tune the frequencies corresponding to the
AM range, which ranges from 530 KHz to 1600 KHz. Using an inductor
of 100 µH calculate the value of a variable capacitor, which associated
in parallel with a fixed value, provides the AM band tuning.
